Low Cost Concrete Batching Plant – HZS25/HZS35

HZS25 and HZS35 are both common small concrete batching plants, suitable for some small projects or the production of ready-mixed concrete. If you have a limited budget, choosing these two models is a good choice.

HZS25/HZS35 low cost concrete batching plant price is bout 10,000 – 15, 000 dollars. It is a forced, simple small mixing plant, which is composed of a material conveyor belt, a mixing host, and a batching machine. It has a simple structure and is easy to install and debug. The mixing host and aggregate lifting use the JS750 twin-shaft forced concrete mixer, and the aggregate batching part uses the PLD1200 concrete batching machine. The loader is used for loading and the electronic scale is used for measurement. The whole process of batching and mixing can be automatically completed by the electronic control system, or it can be manually controlled.

The quality of key components of HZS25/HZS35 low cost concrete batching plant is guaranteed to a certain extent, as follows:

– Mixer:

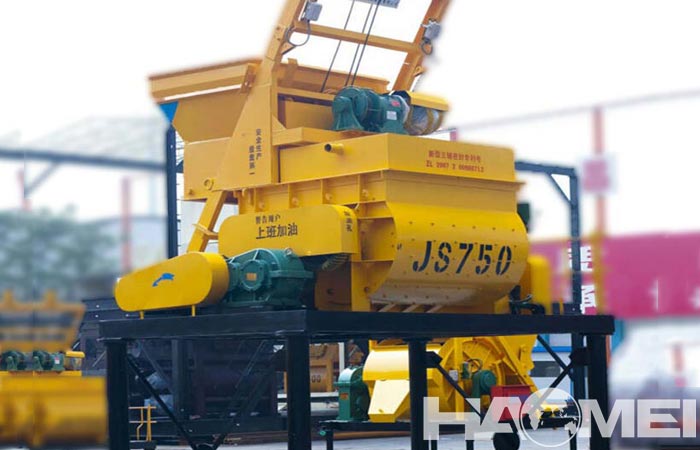

HZS25 concrete batching plant uses JS500 forced mixer, and HZS35 concrete batching plant uses JS750 twin-shaft forced concrete mixer. Both mixers have good mixing quality and high working efficiency, and can produce a variety of concrete such as plasticity and dry hardness. The shaft head sealing performance of the mixer is good. JS mixer has four seals at the inner and outer ends of each shaft head, including steel ring protection, air pressure seal protection, special rubber ring protection and concrete special seal ring protection, which can effectively prevent concrete slurry from entering the bearing and extend the service life of the equipment. In addition, the wearing parts such as mixing arms, blades, and liners are made of high-quality materials such as high-chromium wear-resistant cast iron, with reasonable angle design, good mixing effect, and long life of wear parts.

– Batching system:

The batching machines of HZS25 and HZS35 low cost concrete batching plants are PLD800 and PLD1200 three-bin batching machines respectively. The batching system uses electronic scales for measurement. The sensors are usually high-precision imported products with accurate weighing and quick response. They are equipped with buffer devices and automatic compensation functions to ensure batching accuracy. The aggregate particle size of the HZS35 concrete batching plant batching machine is ≤80mm, the bin capacity is 10m³, the number of bins is 4, and the weighing range and accuracy are 1000±2% kg for aggregate, 600±1% kg for cement, 200±1% kg for fly ash, 300±1% kg for water, and 30±1% kg for admixture.

– Conveying system:

The screw conveyor uses high-quality steel pipes with good rigidity, and the double-pitch blades can reduce the degree of compression of material conveying. Equipped with high-quality reduction gearbox, heavy-duty design, large torque and low noise. Optional universal ball joint makes it easy to install, adjust and turn. It is also equipped with high-quality center bearings and tail bearings for easy installation. Aggregate conveying uses electric rollers, which have strong load-bearing capacity, stable operation, low noise, long service life, and closed conveying to prevent dust and falling materials, which is efficient and environmentally friendly.

– Control system:

The electrical control system uses imported components, has complete functions, high reliability and easy operation. It can realize automatic control, semi-automatic control and manual control, and has functions such as formula input storage, automatic correction of splash error, parameter adjustment, calibration, automatic fault diagnosis, automatic alarm, and real-time printing.

If you want to buy low cost concrete batching plant, we suggest you to give priority to regular manufacturers and mature models.

– Check qualifications: Require manufacturers to provide ISO9001 certification and equipment inspection reports.

– Refer to market reputation: Choose mainstream small concrete batching plant models such as HZS25 and HZS35. These models have mature technology and high universality of accessories.
