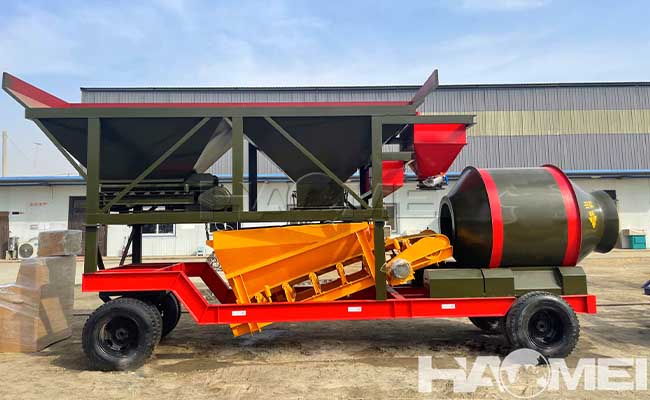

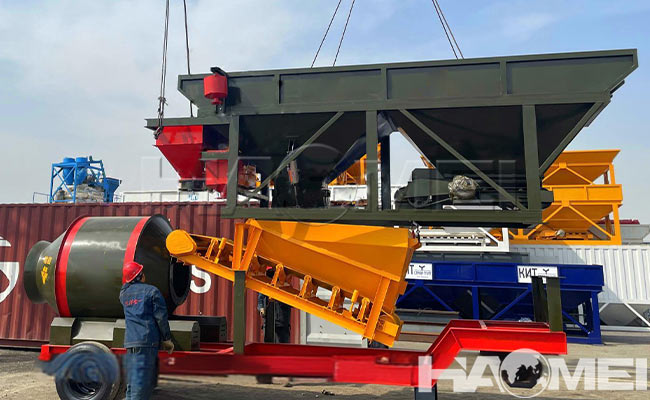

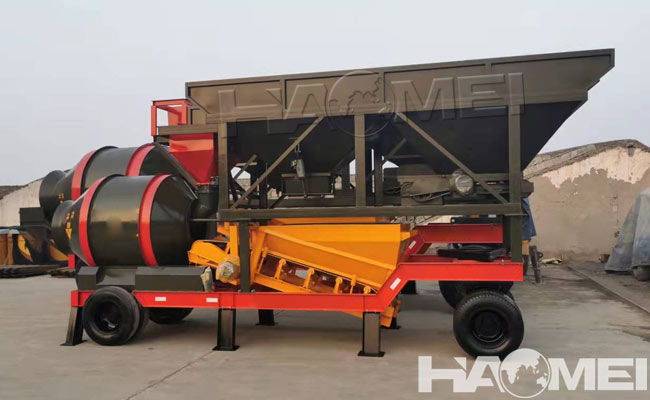

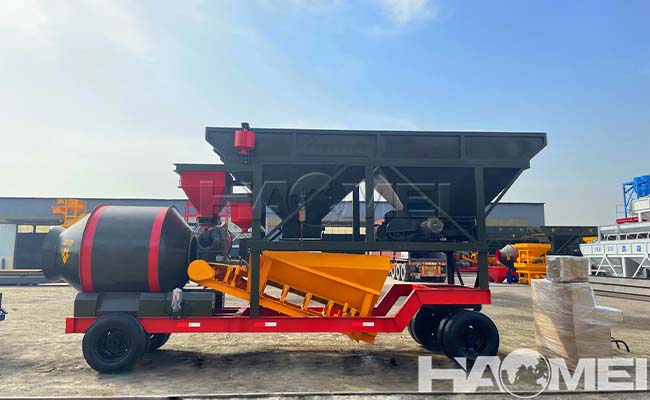

  • YHZM25 Drum Mobile Concrete Batching Plant

    CATEGORY AND TAGS:
    Mobile Concrete Batching Plants ,
    • Model:YHZM25
    • Theo. Mixing Capacity:25m3/h
    • Discharge Height:1600mm
    • Total power:44kw
    • Dimension (L * W * H):8 x 2.2m x 3.8m
    • Trailer Speed:40-60Km/h
    • Concrete Mixer:JZM500
    • Optional cement silo:50/100T
    • Aggregate Type2
    Downloadenquiry
    • Specifications
    • Drawings
    • Cases
    • Video

    Mobile concrete batching plant with drum mixer is a new type concrete mixing stations that with less cost and easy installation.
    Aggregate batching and transferring is automatic and precise;
    Concrete mixing quality is observable, drum clockwise rotating for mixing, and anti-clockwise rotating for discharging;
    The whole plant chassis can be moved easily, don’t need to be separated and assembled;
    This plant is designed to work without foundation, even cooperate working with horizontal cement silo;
    Compared with twin-shaft concrete mixer plant, this concrete batching plant is cheap and save the shipments cost.

    General Parameters

    ModelYHZM25
    Capacity25m3/h
    Concrete mixerJZM500
    Cycle time1.5 minutes
    Weighing accuracyAggregate±2%
    Cement±1%
    Water±1%
    additive±1%

    Features of drum mobile concrete batching plant:

    1.Rapid and easily to assemble and disassemble, conveniently to transport. All of the cable connection don’t need to be unloaded, except the external equipment such as screw conveyor and cement silo, etc.

    2.The performance of mixing is perfect. It adopts drum type concrete mixer to make the concrete mixing equally in shortest time.

    3.For different mixture radios of dry concrete, semi-dry concrete, or plastic concrete, it can make the mixing well.

    4.Top-quality configuration, high reliability, accurate measurement, easy operation.

    Detailed specification

    1. Concrete mixer
    NameSpecification
    ModelJZM500 drum mixer
    Capacity0.5m3/batch
    Motor power4.5kw*2
    Mixing time40s
    Discharging height1300mm; If using concrete transit mixer to collect concrete,we can make a slope with the height of 3000mm to enable it to collect concrete.
    •  Aggregate batcher
    NameSpecification
    ModelPLD800
    Volume of storage bin3.4m3*2pcs
    Weighing sensor1000kg*3pcs
    Cylinder100*250*1pcs
    Motor power4kw*2pcs
    Belt conveyor size500*3300mm*1 ,600*5880mm*1
    Loading height2910mm
    Thickness of storage bin steel plate3mm

    3.  Scales

    NameSpecification
    Cement scaleVolume of cement storage bin0.3m3
    Weighing accuracy+/-1%
    Sensor500kg*3pcs
    Water scaleVolume of water storage bin0.15m3
    Weighing accuracy+/-1%
    Sensor300kg*3
    Water pump power1.5kw
    Additive scaleVolume of additive storage bin0.03m3
    Weighing accuracy+/-1%
    Sensor50kg*1
    Additive pump power1.1kw
    •  Chassis
    NameSpecification
    Qty.1 pcs
    Size11100mm*2000mm*780mm
    Tyre model1000mm
    •  Control system
    NameSpecification
    Electrical elements brandCHNT / DELIXI
    Control console

    drum mobile concrete batching plant component

    drum mobile concrete batching plant drawing



    drum mobile concrete batching plant case3 drum mobile concrete batching plant case2 drum mobile concrete batching plant case1 drum mobile concrete batching plant case drum mobile concrete batching plant case5
