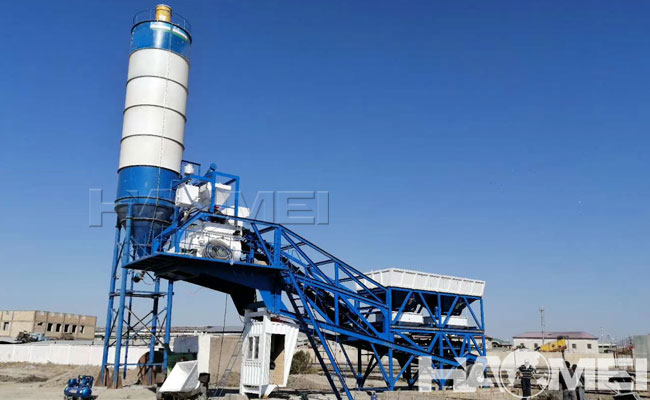

Fast Setup Mini Mobile Concrete Batching Plants

For small-scale infrastructure projects, the speed of equipment setup directly determines when work can begin. Fast setup mini mobile concrete batching plants (such as the YHZS25, YHZS35, and YHZS50 models) are designed specifically to meet the core requirement of “starting work immediately upon arrival.” These units integrate all production components onto a single trailer chassis and undergo full system testing before leaving the factory; on-site, they require only leveling to become operational, with the time from unloading to producing the first batch of concrete taking as little as eight hours. As a product manager at Haomei Machinery, I often tell clients that the “speed” of a mobile concrete plant is measured by four key stages: positioning, wiring, material loading, and trial production.

Integrated Design: Compresses the Installation Cycle

The core design philosophy of these fast setup mini mobile concrete batching plants is “ready-to-use upon delivery.” The aggregate batching bin, inclined belt conveyor, main mixer, weighing hopper, and electrical control cabinet are all pre-installed on a single frame, with all electrical wiring and pneumatic piping completed at the factory. Once on-site, hydraulic outriggers automatically extend and level the unit; with a maximum adjustment stroke of 300mm, the system accommodates site slopes of up to ±12° without the need for repetitive manual measurements. Taking the YHZS35 mobile concrete plant as an example, the unit requires only external connections to the main power supply (380V three-phase) and a water source. An electrician and a mechanic can complete the electrical and water connections in just two hours—an efficiency improvement of over 90% compared to the 3–5 day installation cycle required for stationary plants of similar capacity.

Relocation Efficiency: No Disassembly of Core Components Required

Relocating traditional stationary concrete batching plant equipment involves disassembly, hoisting, transport, and re-installation—a process taking 3–7 days per move and incurring additional costs for hoisting and labor. The relocation process for fast setup mini mobile concrete plants is extremely simple: retract the hydraulic outriggers, fold the aggregate bin side panels, turn off the main power switch, and connect the towing pin to the prime mover to drive away. In transport mode, the YHZS25 mini mobile concrete plant measures approximately 9 meters in length, 2.5 meters in width, and 3.2 meters in height; it can be towed on public roads at speeds up to 40 km/h without requiring an oversized transport permit. Models ranging from YHZS35 to YHZS50 can also be towed as complete units; a single driver can handle the relocation without the need for additional hoisting equipment. For linear infrastructure projects involving multiple sections and tight schedules—where one unit might serve 3 to 5 different work sites—the savings in time and costs during relocation are substantial.

Quick Installation Does Not Mean Compromised Performance

While these compact mobile concrete batching plants minimize installation time, their core production capabilities meet industrial-grade standards. Taking the YHZS35 as an example, it is equipped with a JS750 twin-shaft forced mixer featuring a nominal discharge capacity of 750L, a 60-second cycle time, and a theoretical output of 35 m³/h (with a stable continuous output of 30–32 m³/h). The metering system utilizes independent, tiered weighing: the PLD1200 aggregate batcher offers a cumulative weighing accuracy of ±2% across its three bins, while cement, water, and admixtures are weighed independently with an accuracy of ±1%. The mixer’s liners and mixing blades are made of high-manganese wear-resistant steel, offering a service life of at least 80,000 batches under normal operating conditions; the plant can produce both standard and dry-hard concrete and is compatible with crushed stone aggregates up to 60mm in size.

Selection Advice: Suitable Applications

Based on over a decade of export experience, compact fast setup mini mobile concrete batching plants are best suited for three types of scenarios:

First, emergency works and urgent repairs requiring rapid mobilization and project durations of less than three months;

Second, rural road and pipeline network projects where work sites are dispersed and frequent relocation is necessary;

Third, projects in mountainous or remote areas with poor site conditions that make pouring a concrete foundation impossible.

When selecting a model, we recommend matching it to your daily production requirements: choose the YHZS25 for a daily output of up to 100 m³, the YHZS35 for around 200 m³, and the YHZS50 for over 300 m³.Haomei Machinery’s YHZS fast setup mini concrete batching plant has been exported to over 30 countries. These units feature standard CE certification and multilingual operating interfaces. Supported by a global spare parts network and remote technical assistance, they enable overseas customers to achieve a highly efficient workflow: starting operations immediately upon delivery and quickly relocating once the project is complete. Please feel free to contact us for detailed technical specifications, including installation dimension drawings and site layout plans.
